| Brand Name: | BAIWAY |
| Model Number: | TC147 |
| MOQ: | 1 |
| Price: | $19~$28/set (Retail price) |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs / month |

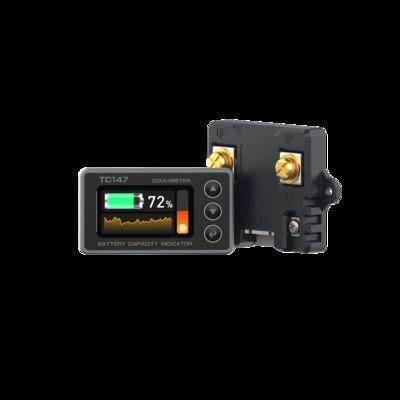

With high-precision current sampling, it displays real-time power, remaining battery level, and other key parameters for electric motorcycles, helping users plan trips effectively. The color screen simultaneously shows multiple data points like voltage, current, and capacity, providing clear visibility during rides to optimize riding strategies and estimate battery range.
The product operates within a temperature range of -10°C to 50°C, making it suitable for electric motorcycles under various climate conditions, such as high-temperature exposure in summer or low-temperature riding in winter. The faceplate uses UV-resistant PVC material to reduce aging and brittleness caused by ultraviolet radiation, extending service life. Flexible installation options include panel embedding or handlebar mounting, ensuring a sleek vehicle appearance while providing excellent dust resistance and enhanced reliability for outdoor use.
Equipped with features like low-battery alarm, it promptly notifies users of battery status to prevent lifespan degradation due to over-discharge. When not charging or discharging, the device enters sleep mode for low-power operation, consuming minimal vehicle electricity and avoiding impact on overall range during extended use.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 80.0 | V | |
| Working consumption (Backlight 50%) | 350 | mW | ||
| Working consumption (Backlight 100%) | 450 | mW | ||
| Sleep consumption (Backlight 0%) | 30 | mW | ||
| Sleep consumption (Backlight 2%) | 150 | mW | ||
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 999.0 | Ah | |
| Matched CS30 shunt | 0 | 30 | 45 | A |
| Matched CS50 shunt | 0 | 50 | 75 | A |
| Matched TCS100 shunt |
0
|
100
|
150 | A |
| Ambient temperature range | -10.0 | 20.0 | 50.0 | ℃ |
| Dimensions | 52.4*29.4*9.4 | mm | ||
| Coulometer weight | 11.0 | g |
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
