| Brand Name: | BAIWAY |
| Model Number: | TR16 |
| MOQ: | 1 |
| Price: | $17-26/set (Retail price) |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs / month |
The TR16 display offers riders a highly visual interface for essential battery information. Its screen simultaneously shows a power indicator bar, a charging/discharging icon, and one switchable key parameter (voltage/current/capacity/SOC). In dynamic riding scenarios, this allows quick access to critical data—such as remaining energy percentage and real-time power flow—without prolonged distraction, enhancing both convenience and safety.
With professional waterproof design, the TR16 resists rain and splashes. As electric motorcycles are exposed to unpredictable weather, this feature ensures stable performance during sudden downpours or vehicle cleaning, aligning with all-weather usability demands and eliminating concerns about display failure in harsh conditions.

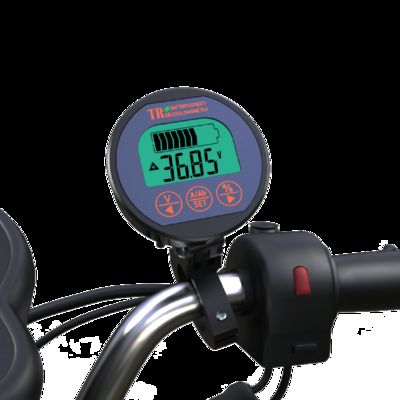

The optional handlebar mount enables secure attachment to motorcycle handlebars or other crossbars. Positioned within the rider’s natural sightline, this ergonomic setup allows easy data reading without significant diversion of attention. The solution supports customization for aftermarket modifications without altering the original vehicle structure.
The monochrome segmented LCD ensures high contrast and readability even under direct sunlight, critical for motorcycle displays. Combined with low power consumption and extended lifespan, it minimizes battery drain and reduces maintenance needs, meeting core user expectations for clarity, durability, and hassle-free operation.
Supporting lead-acid, lithium, sodium, and other battery types (8–120V voltage, 0–500A current), the TR16 adapts to diverse electric motorcycle configurations—from standard low-voltage models to high-performance modified versions. This universality makes it a versatile monitoring solution across evolving battery technologies and vehicle platforms.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 120.0 | V | |
| Working consumption | 10.0 | 12.0 | mA | |
|
Standby consumption
|
|
0.5 | 0.6 | mA |
| Power off consumption | 50.0 | 60.0 | μA | |
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 999.0 | Ah | |
| 50A shunt current | 0.0 | 50.0 | 75.0 | A |
| 100A shunt current | 0.0 | 100.0 | 150.0 | A |
| 350A shunt current | 0.0 | 350.0 | 500.0 | A |
| Ambient temperature range | -10.0 | 25.0 | 50.0 | ℃ |
| Dimensions | ø59*20 | mm | ||
| Complete set weight (50A/100A/350A) | 200/270/410 | g |
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
