| Brand Name: | BAIWAY |
| Model Number: | TK15 |
| MOQ: | 1 |
| Price: | $21-34/set (Retail price) |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs/month |

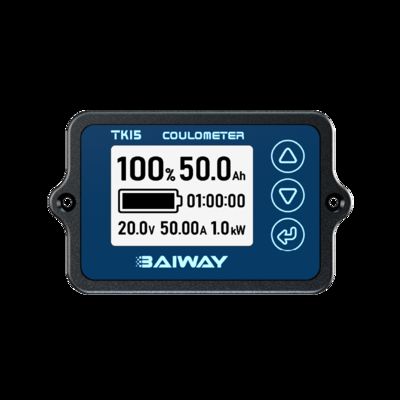

In battery pack applications, real-time monitoring of battery status is crucial. The TK15’s 1.5-inch screen simultaneously displays six key parameters: voltage, current, state of charge (SOC), power, capacity, and remaining usage time. This allows users or maintenance personnel to comprehensively assess the battery’s operational status at a glance, without external tools. The highly integrated data presentation significantly enhances monitoring efficiency and intuitiveness.
The TK15’s monochrome dot-matrix screen ensures clear visibility even in bright light, while its ultra-low power consumption and adjustable brightness further optimize energy use. With an operational current of just 8mA and a standby current as low as 0.8mA, the device minimizes its impact on the battery. An auto-standby mode activates after periods of inactivity, ensuring prolonged operation without draining the battery—critical for maintaining overall endurance.
Over-discharging is a major risk to battery lifespan and safety. The TK15’s built-in low-capacity alarm provides a proactive solution: when the battery level drops below a preset threshold, an audible buzzer alerts the user to take action. This directly prevents damage from over-discharging, adding a vital layer of protection for long-term reliability and safety.
The photo above shows the actual electronics manufacturing environment used by Shanghai Capdisp Technology Co., Ltd., including production workstations, electronic assembly equipment, and personnel carrying out manufacturing and inspection activities.
With years of hands-on experience in battery monitoring and electronics manufacturing, the TK15 battery monitor is produced within this environment according to the confirmed product configuration and applicable production requirements. Manufacturing activities may include electronic component assembly, product processing, functional testing, and quality-control procedures relevant to the finished battery monitor.
For the TK15, production and inspection requirements follow the specifications of the confirmed model, including its voltage and current monitoring functions, display configuration, installation structure, and applicable electrical parameters. Inspection items are determined according to the product specifications and the requirements of the selected configuration.
This real factory photograph provides first-hand visual context for the manufacturing environment behind the TK15 battery monitor, helping customers understand the production setting and the personnel involved in manufacturing and quality-control activities. Product specifications, applicable inspection records, and supporting technical documents can be provided according to the confirmed model and project requirements.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 120.0 | V | |
| Working consumption | 6.0 | 8.0 | mA | |
|
Standby consumption
|
|
0.5 | 0.8 | mA |
| Power off consumption | 50.0 | μA | ||
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 9999.0 | Ah | |
| 50A shunt current | 0.0 | 50.0 | 75.0 | A |
| 100A shunt current | 0.0 | 100.0 | 150.0 | A |
| 350A shunt current | 0.0 | 350.0 | 500.0 | A |
| Ambient temperature range | -10.0 | 25.0 | 50.0 | ℃ |
| Dimensions | 66*40*14 | mm | ||
| Complete set weight (50A/100A/350A) | 150/220/360 | g |
The TK15 battery monitor is designed for front-panel recessed installation. Before installation, prepare a rectangular cutout and two screw holes in the equipment panel according to the product's specified installation dimensions.
Insert the TK15 display into the rectangular opening from the front of the panel, ensuring that it is properly positioned. Then, use self-tapping screws through the designated mounting holes to secure the monitor firmly to the equipment panel.
Before completing installation, verify that the display is correctly aligned and securely fastened. Refer to the product's dimensional drawing and the installation illustration below for the required cutout dimensions and mounting-hole positions.
Confirm the panel cutout and screw-hole dimensions against the technical drawing for the selected model before making any modifications to the equipment panel.
Battery monitoring plays a central role in how battery-powered equipment is operated, tested, and maintained. Built on years of hands-on experience with battery monitoring systems, this product is engineered for dependable integration into equipment where continuous observation of battery operating parameters is essential.
Typical application scenarios include electric scooters, battery pack systems, equipment testing setups, and personal mobility devices. In each of these settings, the monitoring solution allows users to observe voltage, current, capacity, and other battery data during real operation and testing, so that system performance and safety can be evaluated with confidence.
When selecting a suitable monitoring product, customers should consider the battery voltage range, current measurement requirements, compatible shunt specification, installation space, and electrical connection method. Our engineering team supports customers with specifications and configuration guidance based on verified product data, ensuring that the appropriate model and configuration are confirmed against the product specifications before integration.
The images above illustrate typical equipment and application scenarios where battery monitoring may be relevant. They are provided as application references drawn from our practical field experience and do not by themselves represent confirmed installations of this product or specific customer projects. Product specifications, applicable test references, and supporting technical documentation can be provided according to the confirmed product configuration and project requirements.
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
