| Brand Name: | BAIWAY |
| Model Number: | TY23 |
| MOQ: | 1 |
| Price: | $12-16/set (Retail price) |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs / month |

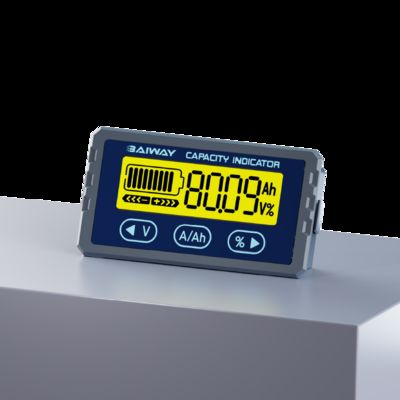

The TY23's high-contrast, clear LCD display and simple interface meet the need for monitoring essential battery parameters in battery pack applications. Whether used for portable power stations, energy storage systems, or backup power supplies, users can accurately grasp the remaining power. The TY23's power indicator bar and voltage/current/SOC/capacity displays provide an intuitive and reliable basis for decision-making, such as estimating runtime or determining when to charge.
The low-power consumption and standby mode design are key optimizations for scenarios where battery packs remain idle for long periods. Many battery packs (e.g., in backup power supplies, seasonally used equipment) spend most of their time inactive. If the monitor itself has high power consumption, it can cause unnecessary self-discharge of the battery pack, potentially leading to damage from over-discharge. The TY23's ultra-low working power and standby function effectively avoid this issue by minimizing the monitor's impact on the battery pack being measured, ensuring system availability when needed.
The wide compatibility with lead-acid, lithium, and sodium batteries, along with broad voltage (8-100V) and current measurement ranges (0-150A), allows the TY23 to adapt to continuously evolving battery technologies. Whether for upgrading lead-acid systems, currently mainstream lithium battery packs, or future sodium battery applications, the TY23 provides a consistent monitoring experience. With a current measurement accuracy of 1%, it can detect very small discharge currents, aiding in load assessment.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 100.0 | V | |
| Working consumption | 11.0 | 12.0 | mA | |
|
Standby consumption
|
|
0.6 | 0.7 | mA |
| Power off consumption | 90.0 | 100.0 | μA | |
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 999.0 | Ah | |
| 50A shunt current | 0.0 | 50.0 | 75.0 | A |
| 100A shunt current | 0.0 | 100.0 | 150.0 | A |
| Ambient temperature range | -10.0 | 25.0 | 50.0 | ℃ |
| Dimensions | 64.0*34.0*14.3 | mm | ||
| Complete set weight (50A/100A) | 55/135 | g |
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
