Compact Color Screen Lithium Battery SOC Monitor TC169 with Multi-Parameter Display

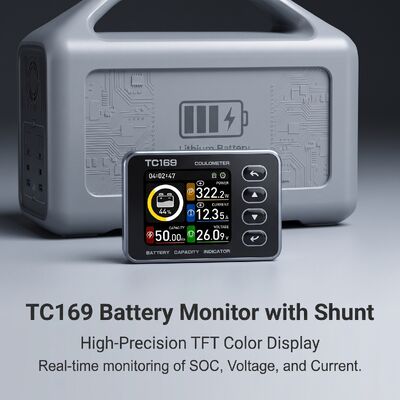

The TC169 is a compact color screen lithium battery SOC monitor engineered for precise real-time monitoring of lithium battery packs. Featuring a 1.69-inch TFT color display, this monitor presents battery state of charge (SOC), voltage, current, and power simultaneously on a single screen, eliminating the need to toggle between readings. The compact design allows direct surface mounting on battery packs used in electric scooters, electric motorcycles, portable power stations, and backup battery systems, making it a practical solution for battery pack power monitoring in space-constrained installations.

One common issue with low-cost battery monitors is SOC readings that jump erratically between charges. The TC169 uses impedance tracking algorithms combined with coulomb counting to deliver stable and accurate lithium battery SOC monitoring across the full 0.1-999Ah detection range. With ±1% accuracy on voltage, current, and capacity measurement, the TC169 provides reliable battery status data that users can trust for their lithium iron phosphate (LiFePO4), lithium-ion, and other lithium battery packs. The multi-parameter simultaneous display shows SOC percentage, real-time voltage, current draw, and remaining capacity on one compact color screen, enabling quick at-a-glance battery health assessment.

The image above shows the actual electronics manufacturing environment of Shanghai Capdisp Technology Co., Ltd., including production workstations, manufacturing equipment, personnel, and organized material handling areas.

The facility supports electronics manufacturing and inspection activities for battery monitoring and related electronic products. Production activities are carried out according to the confirmed product configuration and applicable manufacturing requirements.

For products such as the TC169 compact color screen lithium battery SOC monitor, applicable production and inspection procedures are determined according to the confirmed product specifications and production requirements. These activities may include electronic assembly, product processing, functional inspection, and quality-control checks.

Manufacturing and inspection procedures may vary according to the specific product model and configuration. Applicable technical specifications, inspection requirements, and supporting documentation can be provided according to the confirmed product configuration.

The actual factory environment shown above provides first-hand visual evidence of the manufacturing setting behind Capdisp's battery monitoring products.

The TC169 compact color screen lithium battery SOC monitor is designed for embedded installation in an equipment panel. Before installation, prepare the panel according to the specified cutout dimensions shown in the installation drawing.

Create the required mounting opening according to the specified cutout dimensions. Insert the TC169 from the front side of the equipment panel and position the SOC monitor correctly within the prepared opening.

Verify the applicable cutout dimensions before installation and ensure that the prepared panel opening matches the specified TC169 installation requirements.

The TC169 compact color screen lithium battery SOC monitor can be used as a monitoring and display component in a variety of lithium battery-powered equipment. The application images above illustrate typical equipment categories where battery capacity, voltage, current, and other battery-related parameters may need to be monitored.

Typical application scenarios include:

• Electric Scooters & Motorcycles – Battery pack SOC monitoring and display for electric two-wheelers.
• Portable Power Stations – Battery status and electrical parameter monitoring for portable energy storage equipment.
• Backup Battery Systems – Real-time capacity and voltage monitoring for backup and standby battery installations.
• DIY Lithium Battery Packs – Multi-parameter SOC monitoring for LiFePO4 and Li-ion DIY battery projects.

The suitable TC169 configuration depends on the battery pack voltage, current range, shunt specification, available installation space, and required monitoring functions. Product selection should be confirmed according to the actual battery system and the applicable TC169 configuration before installation.

The images above are provided as typical application references to illustrate battery-powered equipment and electric mobility scenarios. They do not by themselves represent specific customer projects or confirmed TC169 installations. Actual compatibility and installation requirements should be verified according to the equipment and battery system specifications.

• Compact 1.69-inch color screen fits directly on battery pack surfaces without adding bulk
• Stable SOC readings using coulomb counting with impedance tracking to prevent erratic value jumps
• Multi-parameter simultaneous display shows SOC, voltage, current, and capacity on one screen
• Wide 8-90V input range compatible with various lithium battery pack configurations
• Three shunt options (30A, 50A, 100A) to match different battery pack current requirements
• Four-button operation with selectable simplified or standard interface modes
• Optional membrane keypad version with front splash and water resistance for outdoor use
• Customizable UI interface and communication protocol for OEM integration

This compact color screen lithium battery SOC monitor is designed for lithium battery pack power monitoring in applications including:

• Electric scooter and electric motorcycle battery packs
• Portable power stations and backup battery systems
• DIY lithium battery pack projects (LiFePO4, Li-ion)
• Small-capacity energy storage battery systems
• Recreational vehicle and marine auxiliary battery monitoring

Q: Does the TC169 work with different lithium battery chemistries?

The TC169 is compatible with mainstream lithium battery types including LiFePO4, lithium-ion, and lithium polymer batteries. The SOC monitoring algorithm can be calibrated for the specific discharge curve of your battery chemistry to ensure accurate readings.

Q: How does the TC169 prevent SOC readings from fluctuating?

The TC169 uses a combination of coulomb counting and impedance tracking to deliver stable SOC measurements. Unlike basic voltage-only monitors that show erratic percentages, the TC169 continuously tracks energy in and out of the battery pack and cross-references with voltage characteristics to provide consistent readings across the full charge-discharge cycle.

Q: What parameters are shown on the multi-parameter display?

The compact 1.69-inch color screen displays battery SOC percentage, real-time voltage, current draw (amps), power (watts), and remaining capacity (amp-hours) simultaneously. Users can choose between a simplified interface with essential data or a standard interface with comprehensive parameters.

Q: How is the TC169 installed on a lithium battery pack?

The TC169 features a compact form factor measuring 58.4 x 40.4 x 9.6mm and can be surface-mounted directly on battery packs. The rear-mounted 30A shunt option allows direct integration behind the display for maximum space efficiency.
