| Brand Name: | BAIWAY |
| Model Number: | TC147 |
| MOQ: | 1 Set |
| Price: | USD 19-28 / Set |
| Payment Terms: | T/T |
| Supply Ability: | 5000 Sets per Month |

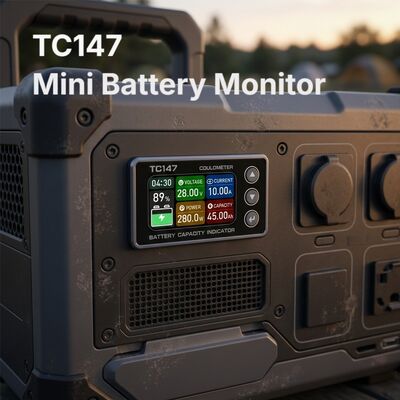

The TC147 is a compact lithium battery monitor equipped with a 1.47-inch color TFT LCD screen, purpose-built for high-precision monitoring of LiFePO4, lithium-ion, and other lithium battery packs. It delivers ±1% measurement accuracy for voltage (8-80V DC) and current (0-150A via external shunt), with capacity detection spanning 0.1 to 999Ah. The miniaturized design measures just 52.4*29.4*9.4mm and requires a panel cutout of only 48*26.5mm, making it ideal for space-constrained lithium battery system installations.
The color display presents voltage, current, and capacity percentage on a single interface, enabling quick status assessment of lithium battery packs. Powered directly from the monitored battery circuit, the TC147 high precision monitor operates reliably across a -10°C to 50°C temperature range.
| Parameter | Specification |
|---|---|
| Model Number | TC147 |
| Brand | BAIWAY |
| Display Type | 1.47-inch Color TFT LCD Screen |
| Working Voltage Range | 8-80V DC |
| Working Current Range | 0-150A (via external shunt) |
| Capacity Detection Range | 0.1-999Ah |
| Measurement Accuracy | ±1% |
| Compatible Battery Types | LiFePO4, Lithium-ion, Li-polymer |
| Operating Temperature | -10°C to 50°C |
| Product Dimensions | 52.4*29.4*9.4mm |
| Panel Cutout Size | 48*26.5mm |
| Certification | CE, RoHS |
The image above shows the actual electronics manufacturing environment of Shanghai Capdisp Technology Co., Ltd., including production workstations, electronic manufacturing equipment and the personnel involved in manufacturing and inspection activities.
The TC147 lithium battery monitor is produced within this electronics manufacturing environment according to the confirmed product configuration and applicable production requirements. Manufacturing activities may include electronic component assembly, product processing, functional inspection and quality-control procedures applicable to the finished monitor.
For the TC147 lithium battery monitor, production and inspection requirements are aligned with the specified product parameters, including its 1.47-inch color display, 8–80V operating voltage range, 0–150A current measurement range, shunt-based measurement system and embedded installation design.
The actual production and inspection processes may vary according to the confirmed product configuration and production requirements. Technical specifications, inspection requirements and applicable supporting documentation can be provided according to the confirmed TC147 configuration.
This real manufacturing environment provides first-hand visual evidence of the production setting behind Capdisp's battery monitoring products and helps customers better understand the manufacturing and inspection environment associated with the TC147 lithium battery monitor.
The TC147 lithium battery monitor is designed for integration into a broad range of lithium battery-powered equipment and energy-storage systems. The application examples shown above represent typical equipment categories that require lithium battery monitoring.
Typical application scenarios include:
The correct monitor model and configuration depend on the equipment design, battery voltage, current range, shunt specification, installation method and the monitoring functions required. Please confirm the applicable configuration and electrical parameters before selection and installation.
The images above are provided as application references illustrating common lithium battery-powered equipment and battery system layouts. Actual compatibility and installation requirements should be confirmed against the specific equipment and battery system specifications.
The TC147 compact monitor is designed for embedded installation in equipment panels. Before installation, prepare the panel opening according to the specified cutout dimensions.
Required Cutout Size: 48 mm × 26.5 mm
After preparing the opening, insert the TC147 lithium battery monitor from the front of the panel and position the unit correctly within the opening, as illustrated above.
Verify the cutout dimensions before installation to ensure the panel opening matches the required 48 mm × 26.5 mm. The installation method should follow the confirmed TC147 configuration and installation requirements.
Required panel cutout: 48 mm × 26.5 mm. The illustration shows the recommended front-side embedded installation method for the TC147 lithium battery monitor.
Q: What lithium battery types does the TC147 high precision monitor support?
A: The TC147 lithium battery monitor is compatible with LiFePO4, lithium-ion, and Li-polymer battery packs operating within the 8-80V DC range. The capacity detection function supports packs from 0.1 to 999Ah for accurate state-of-charge tracking.
Q: Why is high precision important for lithium battery monitoring?
A: Lithium batteries require precise voltage and current measurement for accurate coulomb counting and state-of-charge estimation. The TC147's ±1% high precision accuracy ensures reliable capacity tracking, helping prevent over-discharge and optimizing lithium battery cycle life.
Q: How compact is the TC147 for lithium battery enclosure integration?
A: At 52.4*29.4*9.4mm with a 48*26.5mm panel cutout, the TC147 compact monitor is among the smallest color-screen lithium battery monitors. The 9.4mm depth fits enclosures with minimal rear clearance, ideal for compact lithium pack housings.
Q: How is the external shunt installed for lithium battery current measurement?
A: The external current shunt connects in series on the negative side of the lithium battery circuit. The TC147 measures the voltage drop across the shunt to calculate charge and discharge current within the 0-150A range with high precision ±1% accuracy.
