| Brand Name: | BAIWAY |
| Model Number: | TY23 |
| MOQ: | 1 |
| Price: | $12-16/set (Retail price) |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs / month |

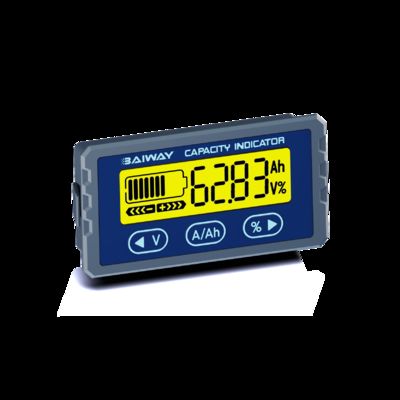

For vehicles like low-speed electric vehicles, senior citizen mobility scooters, and golf carts, drivers need to access key information quickly while driving. The TY23's high-contrast display ensures information remains clearly readable even in strong outdoor light. The intuitive power indicator bar allows the driver to easily gauge the remaining range, much like reading a traditional car's fuel gauge, effectively avoiding the risk of running out of power mid-journey due to inaccurate charge estimation. This directly enhances driving safety and trip planning.
Low-speed vehicles (such as tourist sightseeing cars, golf carts) can often sit idle for days or even weeks. The TY23's low power consumption and standby mode design are particularly important in these scenarios. It minimizes its own drain on the battery, preventing damage from over-discharge caused by the monitor's power draw while the vehicle is parked. For cost-sensitive low-speed vehicle users, this is a key feature for protecting their battery asset and extending its lifespan.
As an outdoor vehicle, golf carts are frequently exposed to variable weather conditions such as rain or strong winds. The TY23 features a front panel with a certain level of water and dust resistance. When flush-mounted, it can effectively protect against splashing water and dust from the front. This design enhances the durability and extends the service life of the TY23, allowing users to operate it with minimal concern about daily exposure to the elements.
The low-speed vehicle market utilizes diverse battery technologies (lead-acid batteries still hold a significant share due to low cost, while lithium battery application is gradually increasing) and different voltage platforms (e.g., 24V, 48V, 60V). The TY23's compatibility allows it to adapt to vehicles with various battery types. It provides stable and reliable monitoring for both new vehicle manufacturing and aftermarket upgrades for older vehicles. This offers low-speed vehicle manufacturers and repair shops a universal standard component, simplifying procurement and inventory management.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 100.0 | V | |
| Working consumption | 11.0 | 12.0 | mA | |
|
Standby consumption
|
|
0.6 | 0.7 | mA |
| Power off consumption | 90.0 | 100.0 | μA | |
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 999.0 | Ah | |
| 50A shunt current | 0.0 | 50.0 | 75.0 | A |
| 100A shunt current | 0.0 | 100.0 | 150.0 | A |
| Ambient temperature range | -10.0 | 25.0 | 50.0 | ℃ |
| Dimensions | 64.0*34.0*14.3 | mm | ||
| Complete set weight (50A/100A) | 55/135 | g |
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
Please reach out to us via the contact information on our "Contact Us" page.
