| Brand Name: | BAIWAY |
| Model Number: | TR16 |
| MOQ: | 1 |
| Price: | $17-26/set (Retail price) |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs / month |

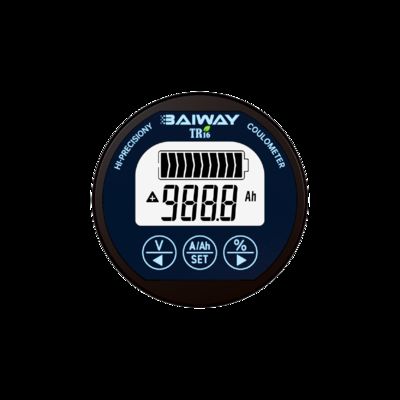

In residential communities, scenic spots, and large industrial parks, low-speed electric vehicles are commonly used for transportation. The TR16 battery monitor, with its simple and intuitive interface, serves as a reliable battery management solution. The clear power indicator bar helps estimate remaining range, allowing users to plan trips easily. With one-touch switching between key parameters like voltage, current, and SOC, battery status is always accessible, preventing mid-journey breakdowns.
As vehicles designed for outdoor use, their instruments must withstand changing weather conditions. The TR16 offers reliable protection against rain and splashes, performing steadily in damp environments such as light rain or during vehicle cleaning. Its internal components are effectively shielded, significantly enhancing reliability and durability in outdoor scenarios.
Community vehicles are not used daily and often remain idle for weeks. The TR16’s ultra-low power design eliminates concerns about battery drain during inactivity. With a standby power consumption of only 0.6mA, it has minimal impact on the battery. Even after extended periods of disuse, the vehicle retains sufficient power to start immediately, avoiding the risk of battery depletion due to unnecessary energy loss.
Whether for community patrol vehicles or personal transport, the TR16’s circular design integrates seamlessly into original vehicle panels. It offers three backlight colors (green, yellow, white) to match personal preferences or fleet management requirements. Custom faceplate films with logos are also supported, enabling businesses to maintain a unified brand image and consistent design style.
With wide voltage (8–120V) and current (0–500A) compatibility, the TR16 adapts perfectly to various low-speed electric vehicles in communities, such as sightseeing cars and patrol vehicles. Its stable performance ensures accurate readings under different loads, making it an intelligent core for efficient fleet operations and enhanced personal user experiences.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 120.0 | V | |
| Working consumption | 10.0 | 12.0 | mA | |
|
Standby consumption
|
|
0.5 | 0.6 | mA |
| Power off consumption | 50.0 | 60.0 | μA | |
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 999.0 | Ah | |
| 50A shunt current | 0.0 | 50.0 | 75.0 | A |
| 100A shunt current | 0.0 | 100.0 | 150.0 | A |
| 350A shunt current | 0.0 | 350.0 | 500.0 | A |
| Ambient temperature range | -10.0 | 25.0 | 50.0 | ℃ |
| Dimensions | ø59*20 | mm | ||
| Complete set weight (50A/100A/350A) | 200/270/410 | g |
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
Please reach out to us via the contact information on our "Contact Us" page.
