| Brand Name: | BAIWAY |
| Model Number: | TK15 |
| MOQ: | 1 |
| Price: | $21-34/set (Retail price) |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs/month |

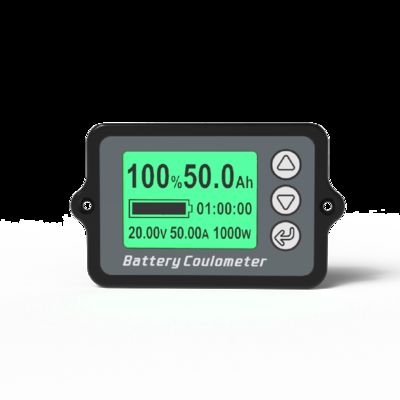

The TK15 is a high-value, small-screen battery monitor featuring a compact structural design. Its core function is to display key battery parameters in real time. The 1.5-inch screen simultaneously shows six essential data points: voltage, current, SOC, capacity, power, and estimated remaining usage time, meeting the need for comprehensive battery status monitoring. The TK15 is suitable for a wide range of applications, including battery-powered equipment, energy storage systems, and backup power supplies.
Equipped with an energy-efficient monochrome dot-matrix display, the TK15 ensures clear readability while minimizing power consumption—drawing only 8mA during operation and 0.8mA in standby mode, with negligible impact on the battery itself. The screen is designed for long-term use, resisting aging or degradation even under continuous operation, making it ideal for environments requiring persistent monitoring. Users can adjust the screen brightness according to ambient lighting conditions, enhancing visibility while optimizing power efficiency.
Installation is straightforward: simply secure the unit via pre-drilled screw holes on both sides, allowing firm mounting on control panels or equipment surfaces. In terms of compatibility, the TK15 supports common battery types such as lead-acid, lithium and sodium-ion batteries, with an input voltage range of 8–120V and a current detection range of 0–500A, making it adaptable to most small and medium-sized energy storage batteries on the market.
Thanks to its wide voltage compatibility and multi-parameter display capability, the TK15 is particularly suited for electric vehicles, AGVs, UPS backup power systems, and other scenarios requiring continuous battery status monitoring. Its clear parameter layout and reliable screen performance help users achieve precise battery management, extending overall battery life.
The photograph above captures the real electronics manufacturing site of Shanghai Capdisp Technology Co., Ltd., where production workstations, electronic assembly equipment, and inspection personnel are all present.
Drawing on extensive practical experience in battery monitoring and electronics production, the TK15 battery monitor is built in this facility according to the approved product configuration and the relevant production requirements. The manufacturing process covers electronic component fitting, product processing, functional testing, and the quality-control steps applied to the finished battery monitor.
For the TK15, the production and inspection requirements are derived from the specifications of the confirmed model, including its voltage and current monitoring functions, display configuration, mounting structure, and applicable electrical parameters. The inspection items are set according to the product specifications and the requirements of the selected configuration.
This genuine factory image provides first-hand visual context for the manufacturing environment behind the TK15 battery monitor, giving customers a clearer view of the production setting and the staff involved in manufacturing and quality control. Product specifications, applicable inspection records, and supporting technical documents can be supplied according to the confirmed model and project requirements.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 120.0 | V | |
| Working consumption | 6.0 | 8.0 | mA | |
|
Standby consumption
|
|
0.5 | 0.8 | mA |
| Power off consumption | 50.0 | μA | ||
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 9999.0 | Ah | |
| 50A shunt current | 0.0 | 50.0 | 75.0 | A |
| 100A shunt current | 0.0 | 100.0 | 150.0 | A |
| 350A shunt current | 0.0 | 350.0 | 500.0 | A |
| Ambient temperature range | -10.0 | 25.0 | 50.0 | ℃ |
| Dimensions | 66*40*14 | mm | ||
| Complete set weight (50A/100A/350A) | 150/220/360 | g |
The TK15 battery monitor is intended for recessed front-panel mounting. Before installation, prepare a rectangular cutout and two screw holes in the equipment panel in line with the product's specified installation dimensions.
Fit the TK15 display into the rectangular opening from the front of the panel, confirming that it sits correctly. Then drive self-tapping screws through the designated mounting holes to fix the monitor firmly to the equipment panel.
Before finishing the installation, confirm that the display is properly aligned and firmly fastened. Consult the product's dimensional drawing and the installation illustration below for the required cutout dimensions and mounting-hole positions.
Check the panel cutout and screw-hole dimensions against the technical drawing for the selected model before carrying out any modifications to the equipment panel.
Reliable battery monitoring is fundamental to the operation, testing, and maintenance of battery-powered equipment. Drawing on extensive practical experience with battery monitoring systems, this product is built for dependable integration into equipment that requires continuous observation of battery operating parameters.
Typical application scenarios include electric scooters, battery pack systems, equipment testing setups, and personal mobility devices. In these settings, the monitoring solution lets users observe voltage, current, capacity, and other battery information during actual operation and testing, allowing system performance and safety to be assessed reliably.
When choosing a suitable monitoring product, customers should take into account the battery voltage range, current measurement requirements, compatible shunt specification, installation space, and electrical connection method. Our engineering team assists customers with specifications and configuration guidance grounded in verified product data, so that the right model and configuration are confirmed against the product specifications before integration.
The images above show typical equipment and application scenarios in which battery monitoring may be relevant. They are offered as application references based on our practical field experience and do not by themselves represent confirmed installations of this product or specific customer projects. Product specifications, relevant test references, and supporting technical documentation can be provided according to the confirmed product configuration and project requirements.
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
Please reach out to us via the contact information on our "Contact Us" page.
