| Brand Name: | BAIWAY |
| Model Number: | TC147 |
| MOQ: | 1 |
| Price: | $19~$28/set (Retail price) |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs / month |

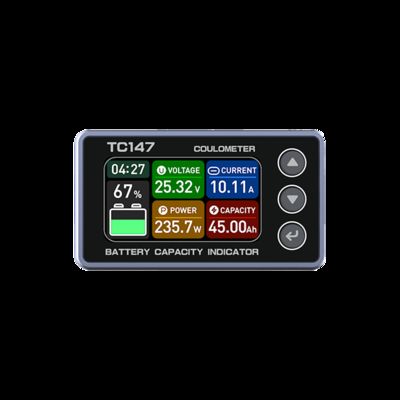

The TC147 stands out with its ultra-compact mini design. Its small form factor ensures effortless installation without any space constraints, fitting seamlessly even in tight environments.
Additionally, the product offers two versions: membrane-button and mechanical-button, catering to diverse user preferences for button operation and protection ratings. The membrane-button version offers front splash and rain resistance, while the mechanical-button version provides superior tactile feedback.
The TC147 features a rich set of functions, supporting real-time curve and multi-parameter display. Its TFT dot-matrix color screen intuitively presents data changes. It also allows adjusting standby brightness, offers standard or simplified interface options, and provides customizable UI for bulk customers. This model includes menu password protection for parameter security and supports startup current adjustment to suit different scenarios.
The TC147 focuses on precise monitoring and management of small to medium-sized batteries, making it an ideal solution for portable energy storage batteries, AGV batteries, electric two-wheeler batteries, and electric wheelchair batteries.
Tailored to the unique needs of these batteries - moderate capacity, space sensitivity, and the requirement for real-time charge/discharge monitoring - the TC147 combines a compact form factor with reliable measurement capabilities. It can be integrated inside battery packs or installed externally without occupying excessive device space.
Its real-time data monitoring function enables users to accurately track remaining capacity and charge/discharge status, preventing damage from overcharging or deep discharging that could shorten battery life. Whether for outdoor energy storage systems or electric mobility devices, the TC147 delivers high precision and exceptional compatibility as a dependable battery management solution.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 80.0 | V | |
| Working consumption (Backlight 50%) | 350 | mW | ||
| Working consumption (Backlight 100%) | 450 | mW | ||
| Sleep consumption (Backlight 0%) | 30 | mW | ||
| Sleep consumption (Backlight 2%) | 150 | mW | ||
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 999.0 | Ah | |
| Matched CS30 shunt | 0 | 30 | 45 | A |
| Matched CS50 shunt | 0 | 50 | 75 | A |
| Matched TCS100 shunt |
0
|
100
|
150 | A |
| Ambient temperature range | -10.0 | 20.0 | 50.0 | ℃ |
| Dimensions | 52.4*29.4*9.4 | mm | ||
| Coulometer weight | 11.0 | g |
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
