| Brand Name: | BAIWAY |
| Model Number: | TN05 |
| MOQ: | 1 |
| Price: | $26/set (Retail price) |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs/month |

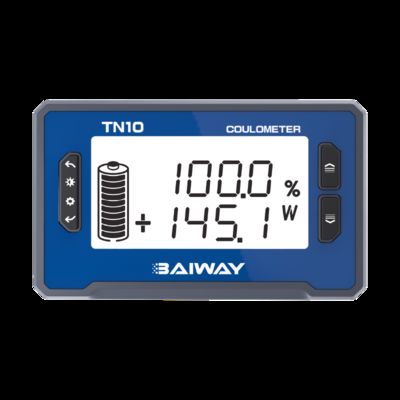

The TN10 can simultaneously display two key parameters and a dynamic battery level indicator on the same screen. Users can easily switch display content via panel buttons and customize backlight brightness to meet visibility needs in various environments. With its compact structure and intuitive interaction, it is suitable for a wide range of mobile devices or energy storage systems requiring real-time monitoring of battery capacity, voltage, current, etc.
The TN10 offers high compatibility with electrical equipment, supporting voltage measurement from 8-80V and current measurement ranging from 0-150A, adaptable to various common battery types and application scenarios. Paired with a high-precision sampling circuit, it accurately displays battery data in real time, helping users fully grasp battery operating status and manage energy effectively. Ideal for small/medium-sized energy storage batteries, battery-powered industrial equipment, and diverse applications.
The TN10 excels in power control, with operating current not exceeding 15mA during normal operation and 0.7mA in standby mode, significantly reducing impact on overall system energy consumption. The ultra-low power design not only extends usage time in battery-powered scenarios but also minimizes drain on the measured system, making it particularly suitable for applications with strict endurance requirements or long-term monitoring.
The TN10 features an integrated design with a built-in shunt, greatly saving installation space and facilitating deployment in structurally compact equipment. Additionally, we offer custom face label services, allowing adjustments to appearance colors and addition of company logos to better align with overall product branding and usage scenarios, enhancing product coherence and professionalism.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 80.0 | V | |
| Working consumption (Backlight 50%) | 8.0 | 10.0 | mA | |
| Working consumption (Backlight 100%) | 12.0 | 15.0 | mA | |
|
Sleep consumption (Backlight 0%)
|
0.3
|
0.7 | mA | |
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 9999.0 | Ah | |
| Ambient temperature range | -10.0 | 25.0 | 50.0 | ℃ |
| Dimensions | 80.3*50.3*28.8 | mm |
The photo above shows the actual electronics manufacturing environment of Shanghai Capdisp Technology Co., Ltd., including production workstations, electronic assembly equipment, and personnel involved in manufacturing and inspection activities.
The TN10 Shunt Based Battery Monitor is produced according to the confirmed product configuration and applicable production requirements. Manufacturing and inspection activities may include electronic component assembly, product processing, functional verification, and quality-control procedures relevant to the finished battery monitor.
For the TN10, production and inspection requirements are determined according to the specified product parameters, shunt configuration, electrical measurement requirements, and applicable quality-control procedures. Inspection items and procedures may vary according to the confirmed product configuration and production requirements.
This real factory image provides first-hand visual evidence of the electronics manufacturing environment behind Capdisp's battery monitoring products. Product specifications, applicable inspection requirements, and supporting technical documentation can be provided according to the confirmed TN10 configuration and project requirements.
The battery monitor is designed for embedded panel installation using rear mounting clips. The monitor is inserted from the front of the equipment panel and secured from the back with the clips, following the applicable product installation drawing.
Prepare a mounting opening in the equipment panel according to the cutout dimensions specified in the product installation drawing.
Insert the battery monitor into the prepared opening from the front of the equipment panel, ensuring that the unit is correctly positioned.
From the rear of the product, fit the mounting clips in the direction shown in the installation diagram. Fasten the clips securely to hold the battery monitor in place.
Before installation, verify the panel cutout dimensions and mounting method against the applicable product drawing. Ensure that the mounting clips are properly engaged before completing the installation.
The TN10 Shunt Based Battery Monitor is designed for battery-powered equipment that requires monitoring of battery operating parameters. With a shunt-based measurement configuration, it can be integrated into compatible battery systems to provide battery information for equipment monitoring and operation.
Typical application scenarios may include portable power stations, battery-powered equipment, energy storage systems, and electric forklifts, subject to the equipment's electrical requirements and the confirmed TN10 configuration.
When selecting the TN10 for a specific application, customers should verify the battery voltage range, required current measurement range, compatible shunt specification, installation space, and electrical connection requirements. The appropriate configuration should be confirmed against the product specifications before integration.
The images above are provided as typical application references to illustrate equipment types where battery monitoring may be relevant. They do not by themselves represent confirmed TN10 installations or specific customer projects.
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
