IP68 Waterproof RV Battery Monitor with 6-Parameter Display and ±1.0% Accuracy Battery Monitor
|
IP68 Waterproof RV Battery Monitor with 6-Parameter Display and ±1.0% Accuracy Battery Monitor
| Brand Name: | CAPDISP |
| Model Number: | TR24 |
| MOQ: | 1 |
| Price: | $29~$54/set |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs/month |
IP68 Waterproof RV Battery Monitor
,6-Parameter Display Battery Monitor
,±1.0% Accuracy Battery Coulometer
The TR24 is a current-sampling RV battery monitor — a coulometer rather than a voltmeter. A matched shunt is bolted in series with the battery pack negative, and every amp that enters or leaves the pack passes through it. The 72.5 mm round gauge samples that current continuously and converts it into state of charge, remaining capacity in Ah, and remaining charge or discharge time — the figure most owners actually need before deciding whether to leave the inverter running overnight.
Voltage gauges sag the moment a load switches on. An RV battery monitor that counts charge instead of reading terminal voltage holds its percentage steady: a 100 Ah pack at 62% still reads 62% while a 40 A inverter load draws from it. On lithium packs it matters most: voltage barely moves between 90% and 20% of usable capacity.

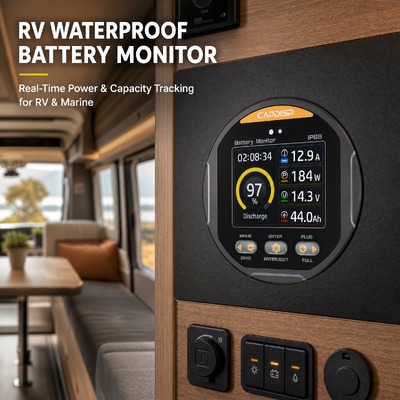

The gauge head carries an IP68 waterproof and dust rating, so this RV battery monitor can sit in a wet bay, on an exterior panel, or in an open campervan cockpit where spray and condensation are routine. The shunt is a heat-generating part and is mounted in a ventilated position, exactly as drawn in the wiring diagram.
Six readings share one screen, so one glance covers both pack condition and load.
Each row below is a permanent field on the RV battery monitor, not a page buried in a menu.
| Field | Reading | What It Answers on an RV |
|---|---|---|
| Voltage (V) | Pack terminal voltage | Is the charger or alternator actually delivering? |
| Current (A) | Net charge or discharge current through the shunt | Which appliance is draining the bank right now? |
| Power (W) | Instantaneous charge or discharge power | How hard is the inverter or solar array working? |
| Capacity (Ah) | Remaining charge in the pack | How many amp-hours are left before recharge? |
| SOC (%) | State of charge, shown on the large central dial | Can the coach run until morning? |
| Time (hh:mm:ss) | Estimated time remaining for charge or discharge | How long until empty, or until full? |
Because the shunt sits on the total negative circuit, simultaneous charge and discharge are reported as one net current — 10 A of solar against a 30 A load reads as a 20 A discharge.
| Parameter | Specification |
|---|---|
| Working voltage | 8–120 V DC |
| Accuracy — voltage / current / capacity | ±1.0% |
| Capacity detection range | 0.1–999 Ah (default setting 100 Ah) |
| Matched shunt options | 50 A (0–75 A), 100 A (0–150 A), 350 A (0–500 A) |
| Working consumption | ≤0.7 W at 100% backlight, ≤0.5 W at 50%, ≤0.3 W at 10% |
| Standby consumption | ≤50 mW with screen off, ≤150 mW at 2% dimming |
| Operating temperature | -10 °C to +60 °C |
| Display | Color TFT LCD, physical buttons |
| Overall dimensions | 72.5 × 72.5 × 20.75 mm |
| Panel cutout | Ø67.3 ± 0.3 mm, locked by rear clip |
| Net weight | 81 g |
| Warranty | 1 year |
Every installation below uses the same IP68 waterproof RV battery monitor and its matched shunt:
- Motorhome, campervan and travel-trailer house banks running 12 V, 24 V or 48 V systems inside the 8–120 V range — the most common home for this RV battery monitor, replacing a voltmeter that only tells half the story.
- LiFePO4 and ternary lithium packs, where a flat discharge curve makes voltage-based percentages unreliable and a current-integrating RV battery monitor stays readable to the last few percent.
- Lead-acid house banks on older coaches and van conversions, with effective capacity entered manually after a full charge and discharge test.
- Marine and yacht DC panels, golf carts, forklifts, e-bikes, outdoor and emergency power supplies, energy-storage cabinets and battery-powered instruments — anywhere the same shunt-based measurement principle applies.
A voltmeter infers charge from terminal voltage, so any load — fridge compressor, inverter, water pump — pulls the reading down and it climbs back when the load stops. This RV battery monitor measures current through the shunt and integrates it over time, so the percentage reflects the energy actually taken out of the pack regardless of what is switched on. On lithium packs the advantage is larger still, because terminal voltage stays almost flat across the middle of the usable range.
Voltage, current and capacity are specified at ±1.0%. Because state of charge is integrated from current, small errors accumulate over weeks of use — true of any precision RV battery monitor. The TR24 corrects this in two ways: full-capacity and zero-capacity voltage thresholds can be set so the reading re-synchronises to 100% or 0% automatically at known pack voltages, and capacity can be set to full or zero manually from the main interface whenever the pack is genuinely full or empty.
The gauge head is IP68 waterproof and dustproof, built for wet bays and exterior panels. The shunt is a high-current heating component with exposed terminals: it goes in a ventilated location, clear of wrapping and flammable material, with its terminals tightened firmly. Even on the IP68 head, prolonged immersion, steam cleaning and high-pressure jets are excluded, since aged seals and temperature cycling reduce sealing performance — the waterproof rating applies to the sealed head, not to the shunt.
Voltage, current, power, remaining capacity in Ah, state of charge as a percentage, and remaining charge or discharge time. All six stay visible at once, so an RV battery monitor of this type replaces two or three single-value gauges on the same panel.
The TR24 is specified for ternary lithium, lithium iron phosphate and lead-acid packs from 8 V to 120 V — one RV battery monitor covering all three chemistries, and covering 12 V, 24 V and 48 V RV systems as well as most marine and traction banks. Before first use, set the effective capacity to the real usable capacity of the pack — the 100 Ah default is only a placeholder, and leaving it unchanged will misreport the percentage even though the current reading itself is correct. Capacity settings span 0.1–999 Ah.
Match the shunt to the highest current the pack will see: the 50 A, 100 A and 350 A versions cover continuous ranges up to 75 A, 150 A and 500 A. A monitor and a shunt of different specifications must not be mixed, because their internal parameters differ, and the battery positive never touches the shunt's copper terminals.
Cut a Ø67.3 ± 0.3 mm hole in the panel, insert the gauge from the front, then press the supplied clip onto the rear to lock it. The shunt sits in series with the pack negative — B− to battery negative, P− to load and charger negative — and the display connects through its shielded cable, which must not be extended. A 20–22 AWG red wire feeds B+ from the battery positive.
