| Brand Name: | BAIWAY |
| Model Number: | TC169 |
| MOQ: | 1 Piece |
| Price: | USD 23-32 / Piece |
| Payment Terms: | T/T |
| Supply Ability: | 5000 Pieces per Month |

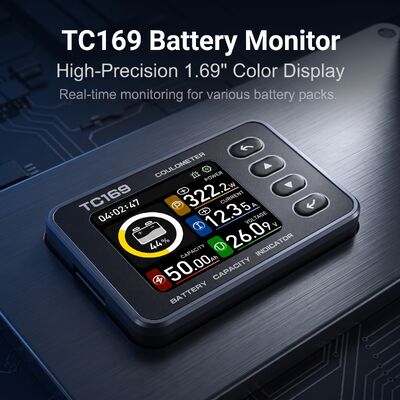

The TC169 is a 1.69-inch color LCD battery capacity indicator for battery pack SOC monitoring. It provides real-time measurement of state of charge (SOC), voltage, current, power, and estimated charge/discharge remaining time with ±1% measurement accuracy. Operating at 8~90V with a 0-150A current measurement range and capacity detection from 0.1 to 999Ah, the TC169 features a front panel waterproof design, delivering the data needed for reliable battery pack capacity assessment.
The TC169 is available in four shunt specifications—30A (0-45A range), 50A (0-75A range), 99A (0-100A range), and 100A (0-150A range)—allowing users to select the optimal configuration for their specific low-current monitoring application. The 1.69-inch color LCD screen presents all monitored parameters simultaneously. With dimensions of 58.4*40.4*9.6mm and a 54*35.5mm mounting hole pattern, the TC169 installs in control panels and equipment enclosures for integrated battery pack SOC monitoring.
| Parameter | Specification |
|---|---|
| Display | 1.69-inch Color LCD |
| Model Number | TC169 |
| Working Voltage | 8~90V |
| Current Measurement Range | 0-150A (30A/50A/99A/100A Shunt Options) |
| Shunt Specifications | 30A (0-45A), 50A (0-75A), 99A (0-100A), 100A (0-150A) |
| Monitoring Parameters | SOC, Voltage, Current, Power, Charge/Discharge Remaining Time |
| Measurement Accuracy | ±1% |
| Capacity Detection | 0.1~999Ah |
| Operating Temperature | -10~60℃ |
| Waterproof Rating | Front Panel Waterproof |
| Dimensions | 58.4*40.4*9.6mm |
| Mounting Hole Size | 54*35.5mm |
| Certification | CE, RoHS |
The image above shows the actual electronics manufacturing environment of Shanghai Capdisp Technology Co., Ltd., including production workstations, manufacturing equipment, personnel, and organized material handling areas.
The facility supports electronics manufacturing and inspection activities for battery monitoring and related electronic products. Production activities are carried out according to the confirmed product configuration and applicable manufacturing requirements.
For products such as the TC169 battery capacity indicator, applicable production and inspection procedures are determined according to the confirmed product specifications and production requirements. These activities may include electronic assembly, product processing, functional inspection, and quality-control checks.
Manufacturing and inspection procedures may vary according to the specific product model and configuration. Applicable technical specifications, inspection requirements, and supporting documentation can be provided according to the confirmed product configuration.
The actual factory environment shown above provides first-hand visual evidence of the manufacturing setting behind Capdisp's battery monitoring products.
The TC169 battery capacity indicator is designed for embedded installation in an equipment panel. Before installation, prepare the panel according to the specified cutout dimensions shown in the installation drawing.
Create the required mounting opening according to the specified cutout dimensions. Insert the TC169 from the front side of the equipment panel and position the indicator correctly within the prepared opening.
Verify the applicable cutout dimensions before installation and ensure that the prepared panel opening matches the specified TC169 installation requirements.
The TC169 battery capacity indicator can be used as a monitoring and display component in a variety of battery-powered equipment. The application images above illustrate typical equipment categories where battery capacity, voltage, current, and other battery-related parameters may need to be monitored.
Typical application scenarios include:
The suitable TC169 configuration depends on the equipment's battery voltage, current range, shunt specification, available installation space, and required monitoring functions. Product selection should be confirmed according to the actual battery system and the applicable TC169 configuration before installation.
The images above are provided as typical application references to illustrate battery-powered equipment and electric mobility scenarios. They do not by themselves represent specific customer projects or confirmed TC169 installations. Actual compatibility and installation requirements should be verified according to the equipment and battery system specifications.
The TC169 monitors SOC (state of charge), voltage, current, power, and estimates the remaining charge and discharge time of the connected battery pack. With a working voltage range of 8~90V and capacity detection from 0.1 to 999Ah, all parameters are displayed simultaneously on the 1.69-inch color LCD screen.
The TC169 delivers ±1% measurement accuracy across all monitored parameters, ensuring reliable SOC tracking and battery pack status data for monitoring applications.
The TC169 battery capacity indicator supports four shunt specifications: 30A (covers 0-45A actual range), 50A (0-75A), 99A (0-100A), and 100A (0-150A). This provides flexible coverage across a 0-150A measurement range for low-current monitoring scenarios in battery pack SOC management.
The TC169 features a front panel waterproof design, providing moisture and dust protection for the display and control interface side. It operates within a temperature range of -10~60℃. For outdoor installations, the rear panel should be housed within a protected enclosure.
