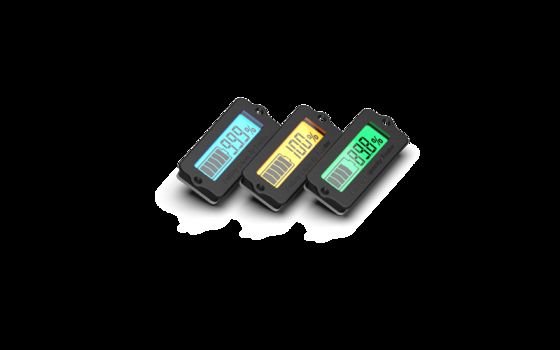

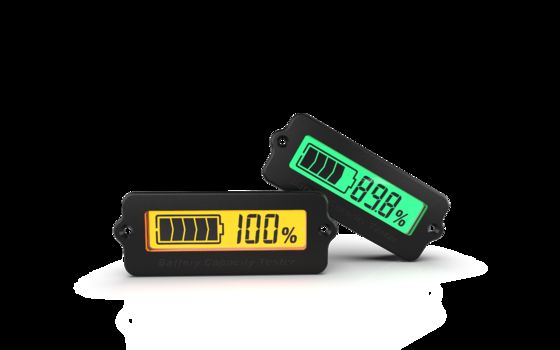

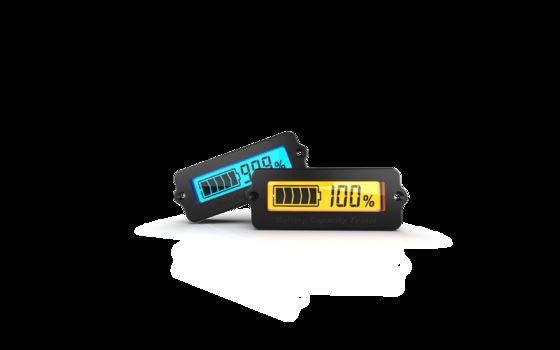

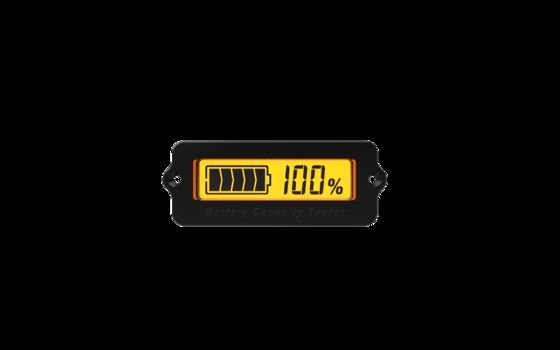

The LY6 is a universal voltage-based battery capacity meter, available in LY6N (flush-mounted) and LY6W (surface-mounted) models. Designed for continuous monitoring and intuitive display of real-time battery voltage and capacity percentage, it is suitable for various equipment and systems requiring power status monitoring.
The LY6 supports both flush and surface mounting to accommodate structural needs in different application scenarios. The LY6N can be installed from the inside, ideal for users requiring only the LCD screen to be visible on the panel. The LY6W is externally mounted and secured with self-tapping screws. The product features a compact structure and standardized dimensions for easy integration in limited spaces.
The product operates in an always-on display mode, providing continuous data visibility without the need for switch operations. It offers multiple backlight color options (e.g., green, blue, yellow) to meet visual matching and identification requirements across different devices.
The LY6 operates automatically without user intervention, reflecting voltage status in real time. Typical applications include electric vehicle battery packs, equipment control panels, energy storage systems, and other power display-related fields, providing users with a simple and reliable battery monitoring solution.
The photo above shows the actual electronics manufacturing environment used by Shanghai Capdisp Technology Co., Ltd., including production workstations, electronic assembly equipment, and personnel carrying out manufacturing and inspection activities.
The LY6N/LY6W Battery Voltage Monitor is manufactured within this electronics production environment according to the confirmed product configuration and applicable production requirements. Manufacturing activities may include electronic component assembly, product processing, functional testing, and quality-control procedures relevant to the finished voltage monitor.
For the LY6N/LY6W series, production and inspection requirements are aligned with the specifications of the confirmed model, including its battery voltage monitoring function, display configuration, installation structure, and applicable electrical parameters. Inspection items are determined according to the product specifications and the requirements of the selected configuration.
This real factory image provides first-hand visual context for the manufacturing environment behind the LY6N/LY6W Battery Voltage Monitor. It helps customers better understand the production setting and the personnel involved in manufacturing and quality-control activities. Product specifications, applicable inspection records, and supporting technical documents can be provided according to the confirmed model and project requirements.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 66.0 | V | |
| Working consumption | 5.0 | mA | ||
| Ambient temperature range | -10.0 | 25.0 | 50.0 | ℃ |
| Complete set weight | 15 | g |
The LY6 series display supports two mounting options to accommodate different equipment panel designs: LY6N internal mounting and LY6W external mounting. Both methods require a rectangular panel opening and two screw holes. The installation method should be selected according to the applicable model and installation drawing.
The LY6N is installed from the inside of the equipment panel, with only the display area exposed on the front.
After installation, check that the display area is correctly aligned with the panel opening and that the screws are securely fastened.
The LY6W is installed from the front of the equipment panel, with the display positioned on the panel's front side.
After installation, check the display alignment and confirm that the mounting screws are securely fastened.
Before installation, verify the panel opening dimensions and screw-hole positions against the installation drawing for the selected model. Use the specified mounting arrangement for LY6N or LY6W, and ensure that the display is properly positioned and secured before connecting or operating the equipment.
The battery monitoring product is designed for integration into a variety of battery-powered equipment where monitoring battery operating parameters is required.
Typical application scenarios may include electric scooters, battery pack systems, equipment testing setups, and personal mobility devices. Depending on the equipment design and confirmed product configuration, battery monitoring can help users observe relevant battery information during equipment operation and testing.
When selecting a suitable monitoring product, customers should consider the battery voltage range, current measurement requirements, compatible shunt specification, installation space, and electrical connection method. The appropriate model and configuration should be confirmed against the product specifications before integration.
The images above illustrate typical equipment and application scenarios where battery monitoring may be relevant. They are provided as application references and do not by themselves represent confirmed installations of this product or specific customer projects.
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
