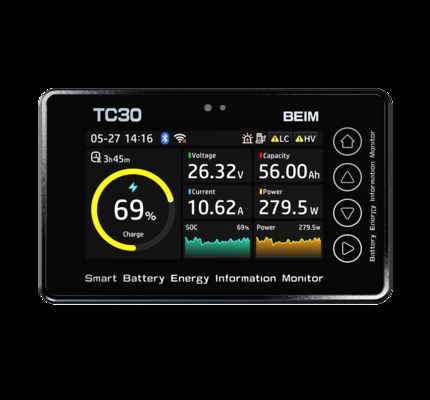

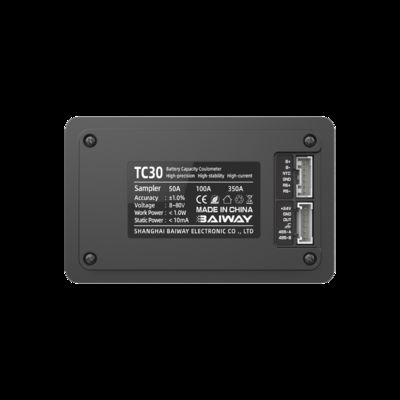

TC30 3.0 Inch Smart Battery Monitor High Resolution Touchscreen With BT/WiFi

Features an ultra-high-resolution IPS color screen with a full-touch capacitive display, presenting multiple parameters simultaneously on an intuitive interface. Supports real-time curve plotting, while the App provides cumulative parameter statistics and peak value display for comprehensive battery performance analysis.

Enables remote monitoring and data transmission via Bluetooth, WiFi wireless connectivity, as well as RS485/TTL wired connections. It can send data to the App or cloud platform, enabling you to monitor the battery status anytime and anywhere.

Equipped with comprehensive alarm features including high voltage alarm, low voltage alarm, low SOC alarm, and low capacity alarm for full-spectrum abnormality detection. Provides full monitoring of abnormal conditions to extend battery lifespan​.

​​Designed for RVs & Home Energy Storage​​

With outstanding display performance, TC30 is ideal for premium battery management applications such as RVs and home energy storage systems.

• High-resolution IPS display screen
• Full capacitive touchscreen design
• Cumulative parameters, peak value display, real-time curves
• Supports Bluetooth/WiFi
• Multiple alert notifications
• Auto-backlight adjustment via ambient light sensor
• RS485/TTL communication data output
• Customizable UI interface
• Menu password protection

The TC30 is designed to integrate with battery monitoring systems through compatible shunts and communication interfaces. Depending on the system configuration, the monitor can be connected to the battery circuit and display key operating parameters such as voltage, current, capacity and other available battery data.

The TC30 also supports Bluetooth/WiFi wireless connectivity and RS485/TTL wired communication, allowing compatible system configurations to transmit or display battery data through connected devices or platforms.

The following diagram illustrates typical TC30 system integration and application configurations, including battery systems, power conversion equipment, loads, wireless communication devices and connected display terminals.

Note: The diagram is provided for system-integration reference. Actual wiring, communication interfaces, shunt selection and connected equipment should be configured according to the specific TC30 model, electrical system and applicable product documentation.

The TC30 Energy Meter supports two embedded installation methods. The appropriate mounting method should be selected according to the thickness of the equipment panel.

For equipment panels with a thickness of ≤ 6 mm, the TC30 can be installed using the plastic mounting clips supplied for embedded installation.

For equipment panels with a thickness of > 6 mm, the TC30 can be installed using the optional metal mounting panel.

• Cut an opening in the equipment panel according to the TC30 panel cutout dimensions shown in the dimensional drawing.
• Insert the TC30 Energy Meter into the opening from the front side of the panel.

• From the rear side of the equipment panel, fit the plastic mounting clips onto the TC30 in the direction shown in the installation diagram.
• Press the clips into position until the meter is securely held in the panel.

Applicable panel thickness: ≤ 6 mm

For equipment panels with a thickness of > 6 mm, the optional metal mounting panel can be used.

• Cut the equipment panel according to the specified TC30 panel cutout dimensions.
• Insert the TC30 Energy Meter into the metal mounting panel from the front side.

• Apply a suitable adhesive evenly around the joint between the metal mounting panel and the TC30 housing.
• Allow the adhesive to set for approximately 30 minutes, or according to the adhesive manufacturer's specified curing requirements.

• After the adhesive has set sufficiently, use screws to secure the metal mounting panel to the equipment panel.

Applicable panel thickness: > 6 mm
Mounting accessory: Optional metal panel

• Confirm the panel cutout dimensions before machining the equipment panel.
• Select the mounting method according to the actual panel thickness.
• Ensure that the TC30 is correctly aligned with the panel opening before securing the mounting clips or metal panel.
• When adhesive is used, follow the adhesive manufacturer's instructions for application, curing time, and compatibility with the relevant materials.
• The final installation should be checked to ensure that the meter is securely retained and that the display and controls, if applicable, remain accessible after installation.

Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.

The TC30 can be configured for battery systems such as lead-acid, lithium-ion and lithium iron phosphate batteries, subject to the applicable voltage range, shunt configuration and product specifications.

The TC30 is covered by a one-year warranty. If a product quality issue occurs during the warranty period, our support team can provide repair or replacement assistance according to the applicable warranty terms. For technical or after-sales questions, please contact us through the Contact Us page.
