| Brand Name: | BAIWAY |
| Model Number: | TC147 |
| MOQ: | 1 |
| Price: | $19~$28/set (Retail price) |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs / month |

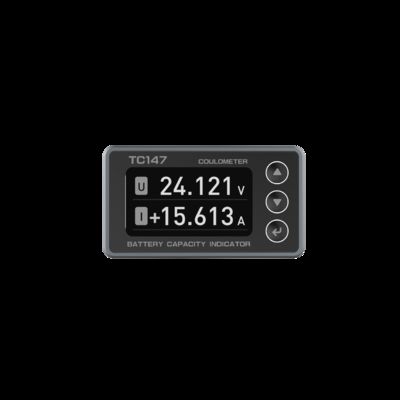

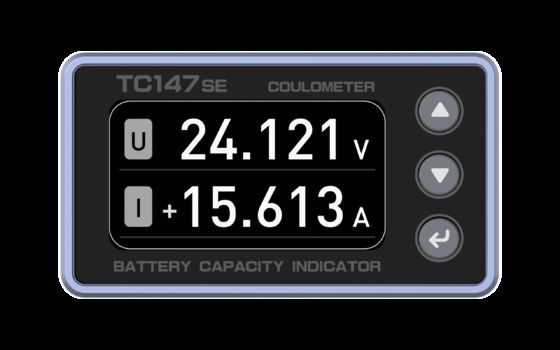

Equipped with a color TFT dot-matrix screen, it allows users to quickly access key information such as remaining battery level, voltage, and current. The adjustable multi-level backlight ensures clear readability in both bright and dim lighting conditions. With flexible installation options—embedded into the battery surface or mounted on handles/control panels for easy access—it significantly enhances usability.
The high-precision shunt (accuracy up to ±1%) continuously tracks charging and discharging status, providing estimates of remaining usable time and battery level. Equipped with a low-capacity alarm function, this helps users schedule timely charging/discharging, preventing damage from overcharging or over-discharging.
Compact and lightweight, the device is ideal for weight- and space-sensitive applications. With a wide operating voltage range (8-80V), it is compatible with mainstream wheelchair batteries. The low-power design avoids impacting battery endurance, while the membrane button version offers splash resistance and light rain protection, ensuring durability in medical or outdoor environments where accidental liquid exposure may occur.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 80.0 | V | |
| Working consumption (Backlight 50%) | 350 | mW | ||
| Working consumption (Backlight 100%) | 450 | mW | ||
| Sleep consumption (Backlight 0%) | 30 | mW | ||
| Sleep consumption (Backlight 2%) | 150 | mW | ||
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 999.0 | Ah | |
| Matched CS30 shunt | 0 | 30 | 45 | A |
| Matched CS50 shunt | 0 | 50 | 75 | A |
| Matched TCS100 shunt |
0
|
100
|
150 | A |
| Ambient temperature range | -10.0 | 20.0 | 50.0 | ℃ |
| Dimensions | 52.4*29.4*9.4 | mm | ||
| Coulometer weight | 11.0 | g |
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
