| Brand Name: | BAIWAY |
| Model Number: | RECS |
| MOQ: | Please contact sales |
| Price: | Please contact sales |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs/month |

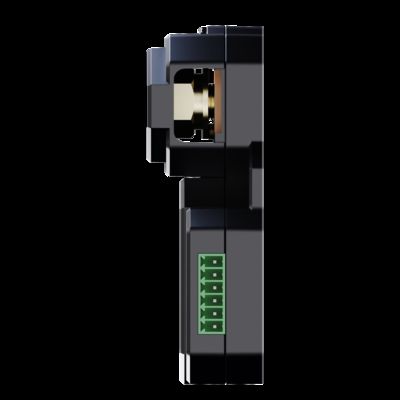

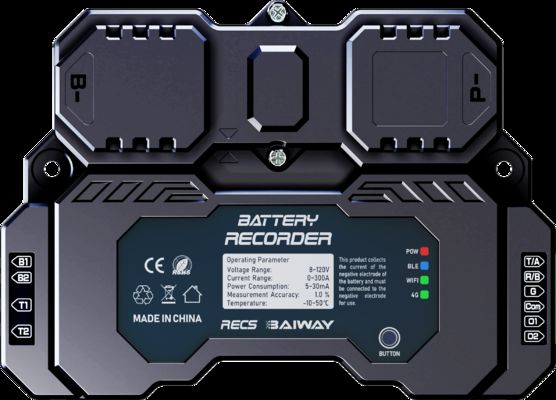

The RECS is a module designed to collect battery data and transmit it externally. It incorporates a built-in 300A high-precision shunt, supporting wireless communication (Bluetooth, WiFi, 4G) and wired transmission (RS485/UART) via a private protocol. Equipped with two control output interfaces, it can connect to external relays or power-off switches. The module locally records data through its built-in storage and transmits it to apps or cloud platforms, providing an intelligent battery management solution for energy storage systems and electric engineering vehicles.
Designed for electric vehicle fleets such as forklifts and golf carts, the module can be incorporated into fleet management solutions to deliver precise, real-time battery data. Via WiFi or 4G networks, multiple devices can simultaneously connect to a cloud management platform.
Managers can remotely monitor real-time battery status and historical data for each vehicle, improve maintenance plans based on accurate battery metrics, and configure alarm functions (low SOC alarm, high/low voltage alarm, big current alarm, etc.). This extends battery life effectively and greatly reduces fleet operating costs.
The RECS enables real-time synchronization of battery data (voltage, current, remaining capacity, etc.) to your mobile app via stable Bluetooth or WiFi connections. It also supports viewing peak values and cumulative statistics.
Whether monitoring home energy storage systems or tracking RV battery status during travels, the system provides remote monitoring and smart alarms for transparent energy management.
Actual production workstations and personnel involved in electronics manufacturing and quality-control activities.
The photo above shows the actual electronics manufacturing environment used by Shanghai Capdisp Technology Co., Ltd., including organized production workstations, electronic assembly equipment, production tools, material handling areas, and personnel carrying out manufacturing and inspection activities.
The RECS battery monitoring module is produced within this electronics manufacturing environment according to the confirmed product configuration, production specifications, and applicable quality-control requirements. Depending on the confirmed configuration, production-related activities may include electronic component handling, module assembly, wiring or connection, functional verification, and other applicable inspection procedures.
For the RECS, production and inspection activities are carried out with reference to the confirmed product specifications and applicable requirements for the battery monitoring module, including its installation arrangement, B-/P- terminal connections, current-sensing configuration, and related electrical functions.
This real factory image provides first-hand visual evidence of the manufacturing and inspection environment behind the RECS product. It helps customers understand the production setting and the personnel involved in electronics manufacturing and quality-control activities.
Specific production procedures, inspection requirements, wiring arrangements, and supporting technical documents may vary according to the confirmed RECS configuration, approved specifications, and project requirements.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 30.0 | 80.0 | V |
| Working consumption (Bluetooth/WiFi connected) | 0.6 | 1.5 | W | |
| Working consumption (Bluetooth/WiFi disconnected) | 0.5 | 1.0 | W | |
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Adjustable turn-on current | 100.0 | mA | ||
| Minimum current detection value | 100.0 | mA | ||
| Capacity detection range | 0.1 | 9999.0 | Ah | |
| Continuous current range | 0~300 | A | ||
| Peak current range | 500A@10s | A | ||
| Ambient temperature range | -10~60 | ℃ | ||
| Bluetooth transmission range | 30 | m | ||
| Transmission baud rate | 115200 | bps | ||
| Bluetooth/WiFi frequency range | 2.402~2.480 | GHz | ||
| Protocol transmission format | Private protocol | |||
| Command response time | <100 | 150 | ms |
A. Module Mounting
The RECS module can be installed inside the battery pack enclosure, on the enclosure surface, or in a suitable position close to the battery pack negative terminal, depending on the confirmed installation arrangement.
B. Battery Negative B- and P- Connections
Installation Verification
Before operation, verify that the module is securely mounted and that the B- and P- connections correspond to the confirmed wiring configuration. Check terminal fastening, cable routing, and connection integrity before powering the system.
The actual mounting position, cable specifications, terminal selection, and wiring arrangement should be determined according to the confirmed RECS model configuration, approved wiring diagram, battery system requirements, and applicable installation instructions.
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
